Inconel 690 Special Alloy GH3039 Alloy In Hardware In Nuclear Power Generation
| Place of Origin | China |
|---|---|
| Brand Name | WL |
| Model Number | Inconel 690 |
| Minimum Order Quantity | 15KG |
| Price | Negotiable |

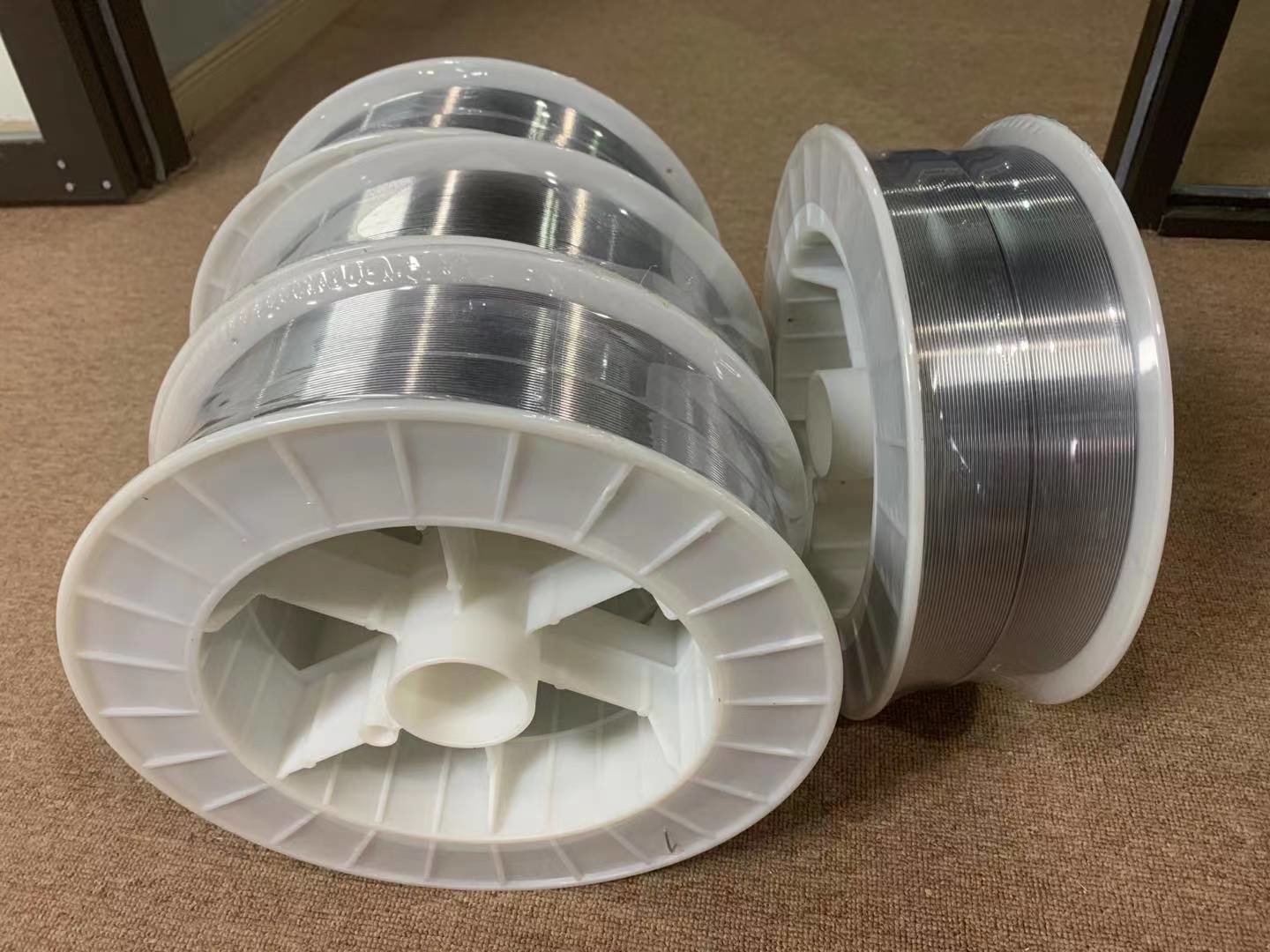

| Packaging Details | 15kg/spool |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Special Alloy | Shape | Wire/ Rod |
|---|---|---|---|
| Specific Heat | 450 J/kg-°C | Chemical Composition | Ni Cr Fe C Mn Si P S Cu |
| Sample | Available | Application | Steam Generator Tubes, Baffles, Tubesheets |
| Certificate | ISO9001 | Density | 8.19g/cm3 |
| Test Report | Mill-Certificate | Electrical Resistivity | 1.148 μΩ-m |
| Yield Strength,MPa | 310 | Tensile Strength,MPa | 650 |
| Size | Customized | ||
| High Light | Inconel 690 Special Alloy,GH3039 Alloy |
||
Product Description
Inconel 690 Special Alloy GH3039 ЗИ602 ХН75МБГЮ High-Temperature Alloy Used In Hardware In Nuclear Power Generation
Product Description
INCONEL® alloy 690 (UNS N06690/W. Nr. 2.4642) is a high-chromium nickel alloy having excellent resistance to many corrosive aqueous media and hightemperature atmospheres. In addition to its corrosion resistance, alloy 690 has high strength, good metallurgical stability, and favorable fabrication characteristics.
The substantial chromium content gives the alloy outstanding resistance to oxidizing chemicals and to high-temperature oxidizing gases.
The high level of nickel imparts resistance to stresscorrosion cracking in chloride-containing environments as well as to sodium hydroxide solutions. The properties of INCONEL alloy 690 are useful for various applications involving nitric or nitric/hydrofluoric acid solutions. Examples are tail-gas reheaters used in nitric acid production and heating coils and tanks for nitric/hydrofluoric solutions used in pickling of stainless steels and reprocessing of nuclear fuels.
The alloy’s resistance to sulfur-containing gases makes it an attractive material for such applications as coal-gasification units, burners and ducts for processing sulfuric acid, furnaces for petrochemical processing, recuperators, incinerators, and glass vitrification
equipment for radioactive waste disposal.
Similar Grade
| UNS | W-Nr | GH |
| N06690 |
2.4642 |
GH3039 |
Chemical Composition(%)
| % | Ni | Cr | Fe | C | Mn | Si | P | S | Cu |
| Min | 58.0 | 27.0 | 5.0 | ||||||
| Max | 31.0 | 11.0 | 0.05 | 0.5 | 0.5 | 0.02 | 0.015 | 0.5 |
Physical Properties
| Grade | Density | Melting Point | Tensile strength,MPa | Yield strength,MPa | Elongation,% |
| Inconel 690 | 8.19g/cm3 | 1343°C-1367 °C | 650 | 310 | 30 |
Feature
Inconel 690 has good resistance to oxidizing chemicals, such as nitric acid, and to sulfur-containing gases at high temperature. Inconel 690 has a superior stress cracking resistance than Inconel 600 in steam generation nuclear reactors for piping, separators and weldments.
Specification Standard
| Rod,Bar | Pipe, Tube | Plate, Sheet, Strip | Pipe fittings | Forgings | Wire |
|
ASTM B166 DIN 17752 ISO 9723 |
ASTM B163,B165,B829, B730,B751 DIN 17751 ISO 6207 |
ASTM B127,B906 DIN 17750 ISO 6208 |
ASTM B366 |
ASTM B564 ISO 9725 DIN 17754 |
ASTM B164 DIN 17753 ISO 9724 |
APPLICATIONS
In various types of high-temperature water, alloy 690 displays low corrosion rates and excellent resistance to stress-corrosion cracking. Thus, alloy 690 is widely used for steam generator tubes, baffles, tubesheets, and hardware in nuclear power generation.
