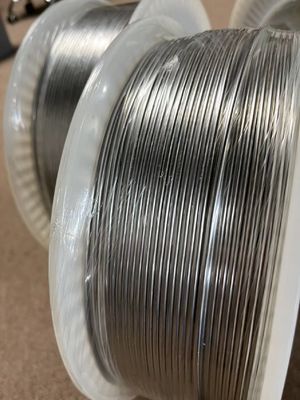

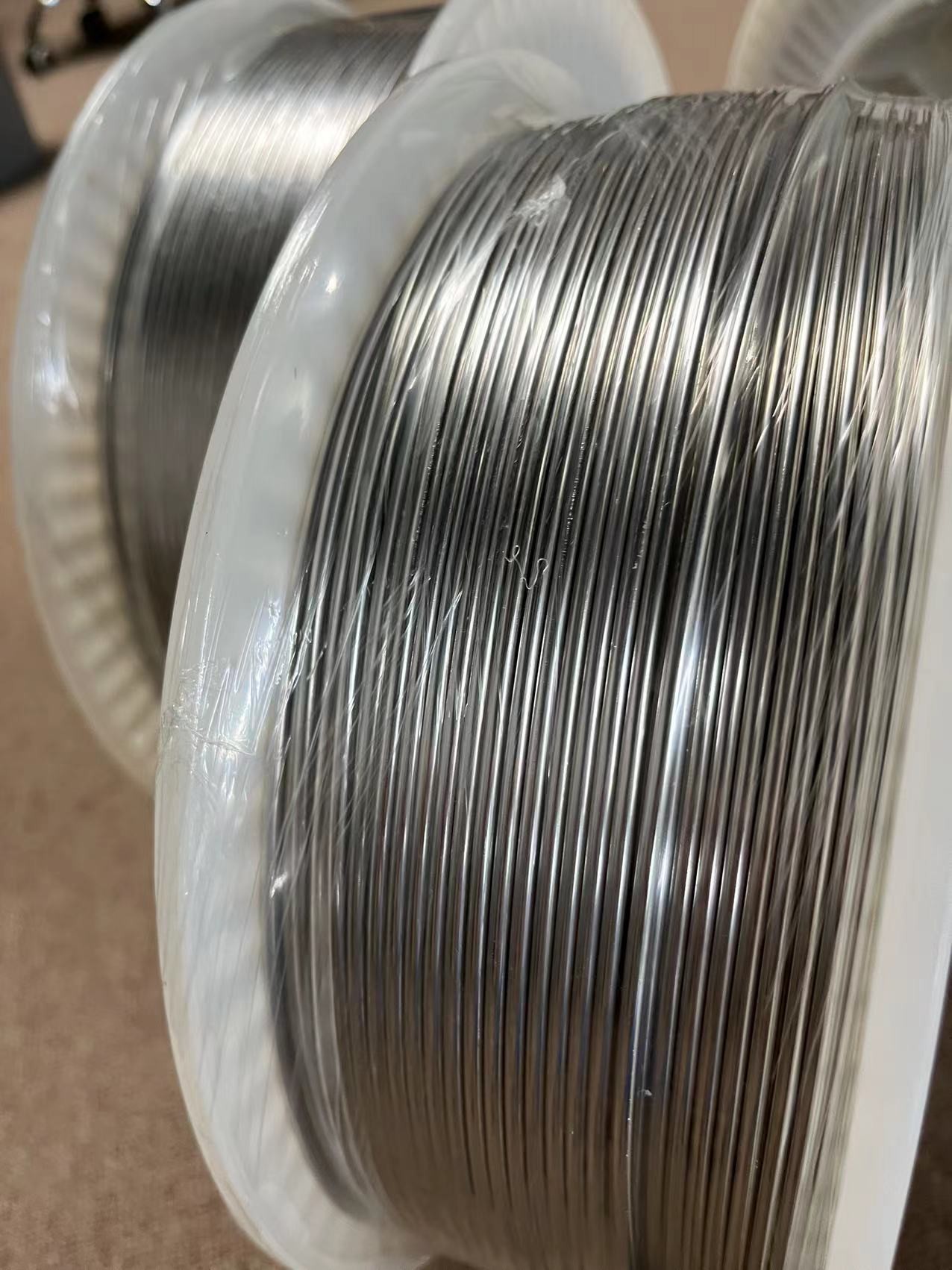

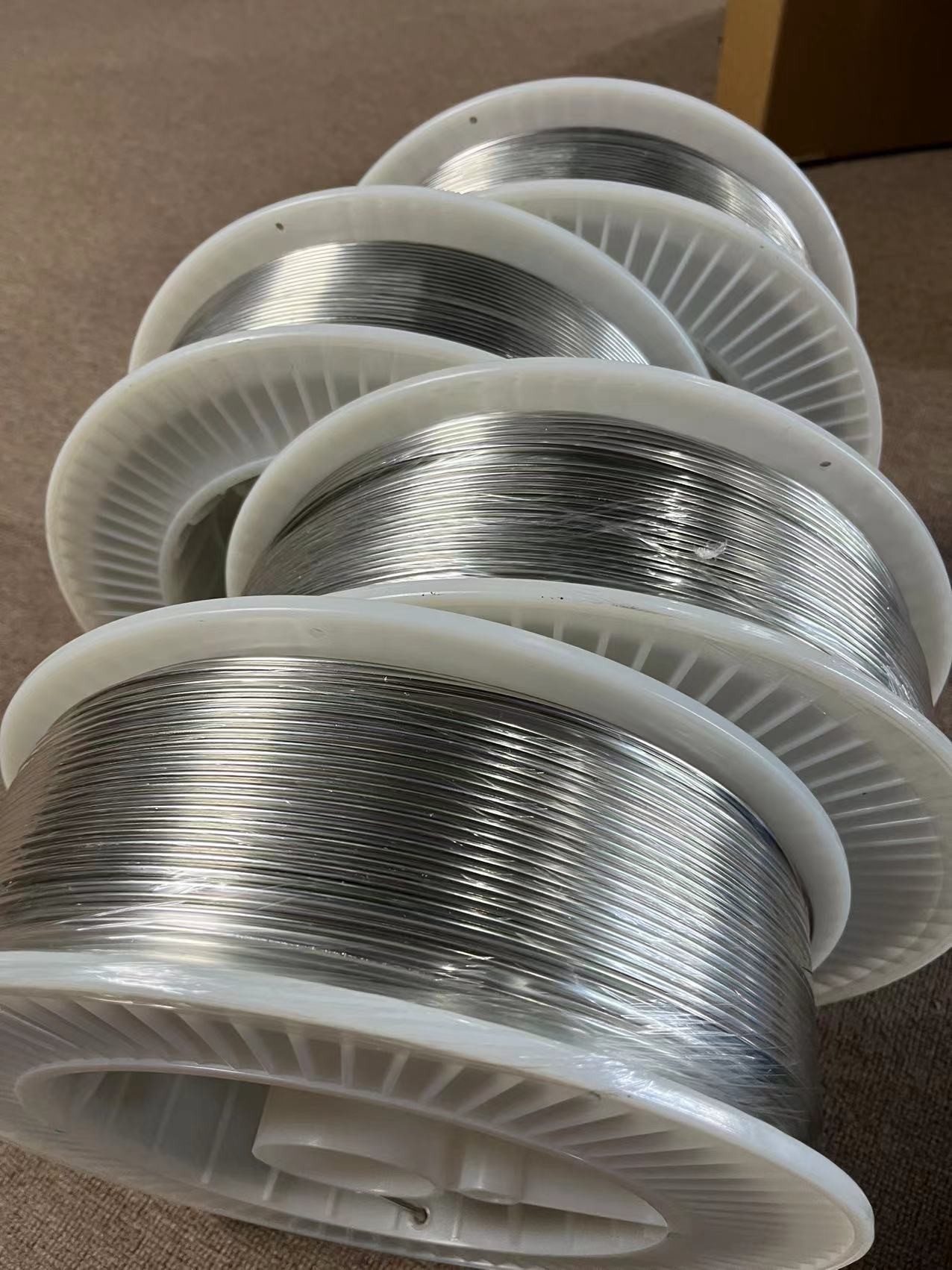

Inconel 725 Special Alloy UNS N07725 Alloy In Side Pocket Mandrels
| Place of Origin | China |
|---|---|
| Brand Name | WL |
| Model Number | Inconel 725 |
| Minimum Order Quantity | 15KG |
| Price | Negotiable |
| Packaging Details | 15kg/spool |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Special Alloy | Shape | Wire/ Rod |
|---|---|---|---|
| Color | Bright | Chemical Composition | Ni Cr Fe C Mn Si P S Cu |
| Sample | Available | Application | Hangers, Landing Nipples, Side Pocket Mandrels |
| Certificate | ISO9001 | Density | 8.31g/cm3 |
| Test Report | Mill-Certificate | Free Documents | CO, Form A E F P, FTA |
| Label | Brand, Neutral Or Customized | Melting Point | 1271°C-1343 °C |
| Size | Customized | ||
| High Light | Inconel 725 Special Alloy,UNS N07725 Alloy,Side Pocket Mandrels Special Alloy |
||
Product Description
Inconel 725 Special Alloy UNS N07725 Highly Resistant Alloy Used In Hangers, Landing Nipples, Side Pocket Mandrels
Product Description
INCONEL® alloy 725 (UNS N07725) is a nickel-chromium-molybdenum-niobium alloy that is highly resistant to corrosion and has been age hardened for extremely high strength twice that of annealed alloy 625. Alloy 725 strength is developed by heat treatment rather than by cold work this also enables strength to be imparted to large non-uniform sections that cannot be strengthened by cold works.It has essentially the same corrosion resistance as INCONEL alloy 625, which is widely used in a broad range of severely corrosive environments.
Similar Grade
| UNS |
| N07725 |
Chemical Composition(%)
| % | Ni | Cr | Fe | C | Mn | Si | P | S | Mo | Nb | Al | Ti |
| Min | 55.0 | 19.0 | Rest | 7.0 | 2.75 | 1.0 | ||||||
| Max | 59.0 | 22.5 | Rest | 0.03 | 0.35 | 0.2 | 0.015 | 0.01 | 9.5 | 4.0 | 0.35 | 1.7 |
Physical Properties
| Grade | Density | Melting Point | Tensile strength,MPa | Yield strength,MPa | Elongation,% |
| Inconel 725 | 8.31g/cm3 | 1271°C-1343 °C | 855 | 427 | 40 |
Feature
With an exceptional combination of metallurgical stability, strength and oxidation resistance at high temperatures. Resistance to oxidation is enhanced by an aluminum addition. The alloy also resists a wide range of corrosive aqueous environments.
Specification Standard
| Rod,Bar | Pipe, Tube | Plate, Sheet, Strip | Pipe fittings | Forgings | Wire |
|
ASTM B805, DIN 17752, ISO 9723 |
ASTM B163.B165 B829,B730,B751 DIN 17751,ISO 6207 |
ASTM B670.B906 DIN 17750,ISO 6208 |
ASTM B366 |
ASTM B564 ISO 9725 DIN 17754 |
ASTM B164 DIN 17753 ISO 9724 |
Applications
The properties of INCONEL alloy 725 are useful for a range of applications that require outstanding corrosion resistance along with high strength. The alloy is used for hangers, landing nipples, side pocket mandrels and polished bore receptacles in sour gas service, where it resists the effects of hydrogen sulfide, chlorides and carbon dioxide. The alloy is also attractive for high strength fasteners in marine applications, where it resists corrosion, pitting and crevice attack in sea water.
