Hoganas 2537 Hard Facing Rod Stellite 6 Polystel 6 Red Color Extrusion Screws Flights Tong Bits
| Place of Origin | China |
|---|---|
| Brand Name | WL-ALLOTECH |
| Model Number | stellite 6 rod |
| Minimum Order Quantity | 5kg |
| Price | Negotiable |
| Packaging Details | Each tube 5kg, 4 tubes pack in one carton |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Stellite 6 Hardfacing Rod | Color | Red |
|---|---|---|---|
| Material | Ni2.5% W4.5% Cr29% Co64% | Welding Current | International Standard |
| Test Report | Mill-certificate | Diameter | 2.5-8.0mm |
| Certificate | ISO 9001 | Hardness | HRC 40-46 |
| Impact | Excellent | Application | High Temperature Valve,engine Valves, Turbine Blades, Etc |
| Length | 350mm 500mm 1000mm 2000mm 3000mm 4000mm | Equivalent | Stellite 6, BISHILITE (MHA) No.6, Weartech WT-6, Stoodite 6 |
| Process | PTA / Laser Cladding / HVOF / Plasma Spray/ 3D Printing | Melting Range | 1285-1410 ºC |
| High Light | Hoganas 2537 Hard Facing Rod,Hard Facing Rod Stellite 6,Polystel 6 hardened welding rods |
||
Product Description
Stellite 6 Polystel 6 Hoganas 2537 Hard Facing Rod Red Color Extrusion Screws Flights Tong Bits
Product Description
WL-Co6 is the most widely used of the wear resistant cobalt-based alloys and exhibits good all-round performance. It is regarded as the industry standard for general-purpose wear resistance applications, has excellent resistance to many forms of mechanical and chemical degradation over a wide temperature range, and retains a reasonable level of hardness up to 500°C (930°F). It also has good resistance to impact and cavitation erosion. WL-Co6 is ideally suited to a variety of hardfacing processes and can be turned with carbide tooling. Examples include valve seats and gates, pump shafts and bearings, erosion shields, and rolling couples. It is often used self-mated.
Another similar type is Co 6H rod, which has higher hardness.
Common Names: Stellite 6, Polystel 6, Hoganas 2537
Standard: AWS 5.21-2001, ERCoCr-A
Chemical Composition(%)
|
C |
Si |
Mn |
Mo |
Cr |
W |
Ni |
Fe |
Co |
|
1.15 |
1.00 |
≤1.00 |
≤1.00 |
29.00 |
4.5 |
≤3.00. |
≤3.00 |
Rest |
Characterisitic
|
AWS / ASME: A5.21 / SFA5.21 ERCoCr-A |
|
|
Metal to metal Wear |
Excellent |
|
Cold / Hot Abrasion |
Good / Good |
|
Erosion / Corrosion |
Excellent / Excellent |
|
Impact |
Excellent |
|
Magnetic |
No |
|
Thermal Conductivity |
14.82 W/m.K, 102.7 Btu-in/hr/ft2/°F |
|
Electrical Resistivity |
106 μ-ohm.cm, 41.7 μ-ohm.inch |
|
Machineability |
Carbide Tools |

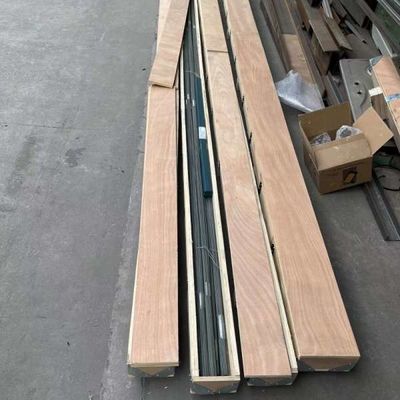

Packing Details
For length 350mm 500mm pack in carton each 5kg
For 1000mm packing in 5kg tube, 4 tubes in one 20kg carton
For length more than 1000mm, pack in wooden box directly
Applications
Used to make motor spiracle, high temperature and high pressure valve sealing surface Bearing Areas
Extrusion Screws Flights Tong Bits
Type We Could Offer
| Trademark | Nominal Chemical Composition | HRC | Application | |||||||||
| C | Cr | Si | W | Ni | Fe | Mn | Mo | Co | B | |||
| WL Co1 | 2.45 | 30.0 | 1.0 | 13.0 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 50-58 | Valve seat insets, bearing, sawteeth, rotary ring, Pump Sleeves | |
| WL Co3 | 2.4 | 30.5 | 1.0 | 13.0 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 50-56 | Valve seat insets,steel mill guide roll, wearing panel of cracker blade, etc. | |
| WL Co4 | 1.0 | 31.0 | 1.0 | 14.0 | ≤3.0 | ≤1.0 | ≤0.5 | ≤0.5 | Bal. | 45-50 | Hot extrusion die, dry battery industry | |
| WL Co6 | 1.2 | 29.0 | 1.0 | 4.5 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 40-46 | Engine valve, high temperature valve, turbine blade | |
| WL Co12 | 1.4 | 30.0 | 1.3 | 8.5 | ≤3.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 44-50 | Pressure valves, sawteeth screw fights | |
| WL Co20 | 2.5 | 32.0 | 1.0 | 17.0 | ≤3.0 | ≤3.0 | ≤0.5 | ≤1.0 | Bal. | 54-59 | Wear plate, bearing sleeve, etc. | |
| WL Co21 | 0.2 | 27.0 | 1.0 | 0.2 | ≤3.0 | ≤2 | ≤1.0 | ≤5.5 | Bal. | 20-40 | Fluid valve seat, turbine blades, hot forging die | |
| WL Co25 | 0.05 | 20.0 | 1.0 | 15.0 | 10.0 | ≤2.0 | ≤1.5 | ≤1.0 | Bal. | 24 | High temperature and corrosion-resistant valve sealing surface, pressure casting dies, etc. | |
| WL Co31 | 0.5 | 26.0 | 1.0 | 7.5 | 10.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 30-35 | Extrusion die, steam turbine blade, etc. | |
| WL Co32 | 1.8 | 26.0 | 1.2 | 12.0 | 22.0 | ≤1.5 | ≤0.5 | ≤1.0 | Bal. | 40-45 | Engine inlet and exhaust valve | |
| WL Co190 | 3.2 | 26.0 | 1.0 | 14.0 | ≤1.0 | ≤3.0 | ≤1.0 | ≤1.0 | Bal. | 54-60 | Petroleum drill bit, mining industry | |
| WL CoT400 | 0.08 | 8.5 | 2.6 | 1.5 | ≤1.5 | ≤1.0 | 28 | Bal. | 0.8 | 50-60 | Valve and roller path, plastic extruder in strongly corrosive | |
| WL CoT800 | 0.08 | 18.0 | 3.4 | ≤1.5 | 1.5 | ≤1.0 | 28 | Bal. | 0.8 | 52-58 | Valve and roller path, plastic extruder in strongly corrosive | |
