Metco 710/3007 Thermal Spray Powder Cr3C2-20NiCr Metal Production Boiler Coatings Sieves And Cones
| Place of Origin | China |
|---|---|
| Brand Name | WL-ALLOTECH |
| Model Number | Cr3C2-20NiCr powder |
| Minimum Order Quantity | 5kg |
| Price | Negotiable |
| Packaging Details | 5kg/bottles, 4 bottles pack in one carton |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Chemistry | Cr3C2 -20(Ni 20Cr) | Morphology | Spheroidal |
|---|---|---|---|
| Shape | Powder | Color | Gray |
| Service Temperature | < 870 °C (1600 °F) | Manufacture | Agglomerated And Sintered |
| Classification | Carbide, Tungsten-based | Purpose | Corrosion And Wear Resistance |
| Raw Material | Cr C Ni Fe | Certificate | ISO 9001 |
| Test Report | Mill-certificate | Deposition Efficiency | 30-55% |
| High Light | Metco 710 Thermal Spray Powder,Metco 3007 Thermal Spray Powder,Cr3C2-20NiCr Thermal Spray Powder |
||
Product Description
Cr3C2-20NiCr Powder Metco 710/3007 Thermal Spray Powder Metal Production Boiler Coatings Sieves And Cones
Product Description

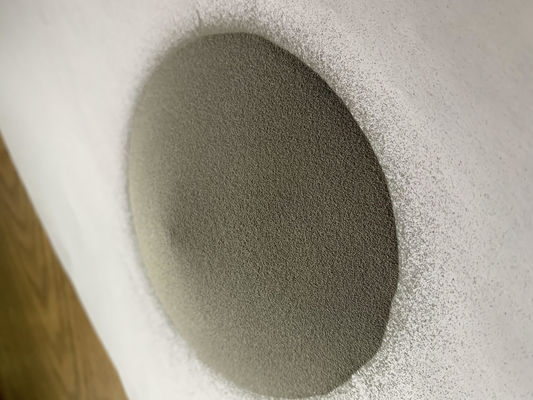

CrC80-NiCr20 are spheroidal, agglomerated and sintered powders for thermal spray that contain 80 % chromium carbide as a hard, wear-resistant phase and nickel 20 % chromium matrix that serves several purposes. The NiCr matrix inhibits the decomposition (decarburization) of the chromium carbide during the thermal spray process and functions as a binder for the carbides in service. In addition, the composition of the matrix is responsible for the excellent corrosion and oxidation resistance of these coatings.
Equivalent to: Praxair CRC 351, Metco 710/3007, Amperit 586, K-804.17
Chemical Composition
| Cr | C(total) | Ni | Fe | |
| CrC80-NiCr20 | Balance | 9.6-10.8 | 13.5-18.5 | < 0.5 |
Physical Properties
| Classification | Carbide, tungsten-based |
| Chemistry | Cr3C2 -20(Ni 20Cr) |
| Manufacture | Agglomerated and sintered |
| Morphology | Spheroidal |
| Service Temperature | < 870 °C (1600 °F) |
| Purpose | Corrosion and wear resistance |
| Process | HVOF |
Typical Deposit Characteristics
| Characteristics | TypicalData | ||
| Recommended Process | HVOF | ||
| Microhardness | HV0.3 | 1100 – 1300 | |
| Macrohardness | HR15N | > 90 | |
| Wear Rate | ASTM G65 B | < 9 mm 3 | < 0.00055 in 3 |
| Porosity | <1% | ||
| Corrosion Resistance | Excellent in 1 M NaOH, very good in 1M NaCl, good in 0.5 M H 2 SO 4 , fair in 1 M HCl | ||
| Maximum Service Temperature | 870 °C | 1600 °F | |
| Deposition Efficiency | 30 – 55 % | ||
Packing Details
| Granularity | -45/+15μm |
| Packing | 5 kg/bottle 4 bottles/box |
Typical uses and Applications
■ Hydraulic cylinders
■ Hydraulic piston rods such as those used for earth-moving equipment
■ Boiler coatings
■ Sieves and cones
■ Furnace rolls in metal production
■ Dampening fountain rollers
Type We Could Offer
| WL TYPE | Kennametal | PMET | Others | Size |
| WL-WC 12Co | JK112 | Pmet 88-12 | 1342VM/Woka 3102 | Customized |
| WL-WC 10Co 4Cr | JK120 | Pmet 86-10-4 | 1350VM/Woka 3652 | Customized |
| WL-WC 17Co | JK117 | Pmet 83-17 | 1343VM/Woka 3202 | Customized |
| WL-WC 10Ni | JK6189 | Pmet 90-10 | 1310VM/Woka 3302 | Customized |
| WL-Cr3C2-25NiCr | JK135 | Woka7200 | Customized | |
| WL-Cr3C2-20NiCr | Woka7100 | Customized | ||
| WL-60%WC+NiCrBSi | Customized | |||
| WL-60%WC+NiBSi | Customized |
