Nicr 80/20 Thermal Spray Powder Amperit 250/251 Low Alloy Carbon Steel Particle Size Distributions
| Place of Origin | China |
|---|---|
| Brand Name | WL-ALLOTECH |
| Model Number | Nicr 80/20 Powder |
| Minimum Order Quantity | 5kg |
| Price | Negotiable |
| Packaging Details | 5kg/bottles, 4 bottles pack in one carton |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Model NO. | Nicr 80/20 Powder | Morphology | Spheroidal Or Irregular |
|---|---|---|---|
| Working Temperature | 1000 °C (1830 °F) | Apparent Density | 3.1 - 4.6 G/cm3 |
| Color | Gray | Raw Material | Ni Cr Si Fe Mn Others (max) |
| Certificate | ISO 9001 | Test Report | Mill-certificate |
| Dimensions | -45/+15μm Customized | Type | Nickel Based Powder |
| Equivalent | Metco 43/5640/4535, FST M-301/302, Praxair NI 105/106/107/1262 Amperit 250/251 | Process | Thermal Spray Coating(HVOF, Plasma Spraying) |
| High Light | Nicr 80/20 Thermal Spray Powder,Thermal Spray Powder Gray,ISO 9001 Thermal Spray Powder |
||
Product Description
Nicr 80/20 Powder Thermal Spray Powder Amperit 250/251 Low Alloy Carbon Steel Particle Size Distributions
Product Description

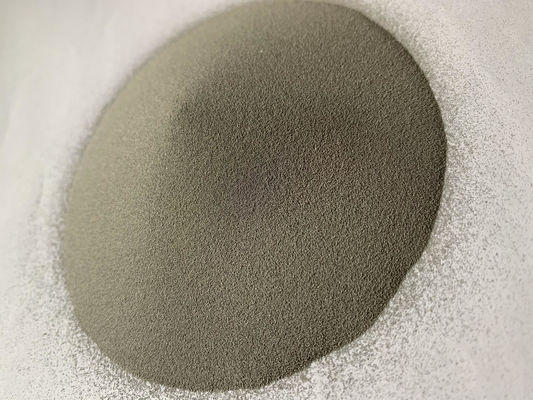

NiCr8020 is a powder manufactured by water atomization with a characteristic irregular particle shape or by gas atomizaion and premium nickel raw materials with spheroidal shape ensuring freely flowing powder feed during thermal spray processing.The powder resists hot oxidizing and corrosive gases,and prevents scaling on carbon and low alloy steels.
Equivalent to: Metco 43/5640/4535, FST M-301/302, Praxair NI 105/106/107/1262 Amperit 250/251
Chemical Composition
| Ni | Cr | Si | Fe | Mn | Others (max) |
| Balance | 19.5% | 1.2% | 1.0% | 1.5% | 0.5% |
Physical Properties
| Morphology | working temperature | Apparent density |
| Spheroidal or irregular | 1000 °C (1830 °F) | 3.1 - 4.6 g/cm3 |
Packing Details
| Granularity | -45/+15μm |
| Packing | 5 kg/bottle 4 bottles/box |
Typical uses and Applications
1,Good bond coat for ceramic top coats.
2,Dense, abrasion and oxidation resistant coatings for salvage and build up applications, such as on carbon and low alloy carbon steel substrates.
3,Products with finer particle size distributions generally produce coatings with finer as sprayed surfaces finishes, which may be desirable when post-coat machining of the coating will be performed.
Type We Could Offer
Nickel based powder
| WL types | Praxair Tafa | Metco | Hoganas | FST | Others |
| Alloy 625 | NI 328/1265 | Metco 1005 | AMPERIT 380 | M-325 | PAC 17 |
| Alloy 718 | NI 202/1278 | Metco 1006 | AMPERIT 407 | M-328 | PAC 718 |
| Alloy C-276 | NI 544/1269 | Metco 4267 | AMPERIT 409 | M-341 | PAC C276 |
| NiAl 95/5 | NI 185/970/109 | Metco 480/450 | AMPERIT 280/281 | M-358/359 | PAC 906 |
| NiCr 80/20 | NI 105/106/107/1262 | Metco 43/5640/4535 | AMPERIT 250/251 | M-301 | PAC 98 |
| Pure Nickel | NI 101/118/1166 | Metco 56 | AMPERIT 175 | M-301 | PAC 900 |
Copper and Iron based
| WL types | Praxair Tafa | Metco | Hoganas | FST | Others |
| Pure Copper | CU 105 CU 159 | Metco 55 1007 | M-901 M-901P | PAC 10 | |
| CuAlFe (Al-Bronze) | CU 114 CU 104 | Metco 51 1004 | M-905 | PAC 16 | |
| CuAl (Al-Bronze) | M-952 | ||||
| SS 316L | FE 101 1236 | Metco 41/1003 | AMPERIT 377 | M-684 | PAC 96 |
| SS 420 | Metco 1002 | M-642 | |||
| SS 431 | Metco 42 | M-687 | PAC 97 |
Cobalt based and Nickel SF powder
| WL types | Praxair Tafa | Metco | Hoganas | FST | Others |
| Cobalt 1 | Metco 8100 | M-487 | Stellite 1 | ||
| Cobalt 6 | CO 106 1256 | Metco 4060 8101 | AMPERIT 344 | M-484 | Stellite 6 |
| Cobalt 12 | Metco 8102 | M-481 | Stellite 12 | ||
| Cobalt T-400 | CO 109 1247 | Metco 66 3002 | AMPERIT 340 | M-494 | Tribaloy T-400 |
| Cobalt T-800 | CO 111 1248 | Metco 68 3001 4800 | AMPERIT 342 | M-499 | Tribaloy T-800 |
| NiCrBSi (59-64HRC) | Metco 15 2001 | M-771 | |||
| NiCrSiBCuMo (58-64HRC) | Metco 14 | M-770 | |||
| NiCrSiBW (55-61HRC) | M-781 M-782 | ||||
| NiCrBSi (35-60HRC) | Metco 12 M 772 M 774 M 775 M 776 M 773 | ||||
| NiCr/SF WC | M-733 M-737 | ||||
| NiCr/SF WC-Co | Metco 31C | M-735 | |||
