Cast WC Hardfacing Products 60-80 Mesh Tubular Hardfacing Electrodes Tungsten Arc Welding High Hardness
| Place of Origin | China |
|---|---|
| Brand Name | WL-ALLOTECH |
| Model Number | Cast WC Tubular Rod |
| Minimum Order Quantity | 5kg |
| Price | Negotiable |
| Packaging Details | Normal Package or Pack of Tubular Cast Tungsten Carbide Welding Rod According to Customers' requirement |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cast WC Tubular Rod | Hardness(HRA) | 93~93.7 |
|---|---|---|---|
| Micro Hardness(kg/mm²) | 2500-3000 | TRS( Kg/mm²) | 48.2 |
| Density( G/cm³) | 16.5 | Color | Metal Color |
| Melting Point℃ | 2525 | Diameter | 3.2-5.0mm |
| Length | 600mm | Welding Type | Oxygen |
| Certificate | ISO 9001 | Test Report | Mill-certificate |
| High Light | Cast WC Hardfacing Products,Hardfacing Products 80 Mesh,60 Mesh Tubular Hardfacing Electrodes |
||
Product Description

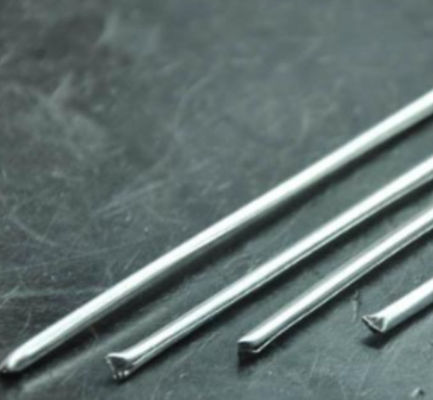

Cast WC Tubular Hardfacing Electrodes 60-80 Mesh Hardfacing Products Tungsten Arc Welding High Hardness
Product Description
The tubular wear-resistant rod is a kind of wear-resistant rod with high wear-resisting wear and cutting wear and high hardness designed and manufactured by our company. Its main hard phase is cast tungsten carbide and macrocrystalline tungsten carbide, and a variety of carefully designed components are mixed, granulated, dried and sieved. The electrode has the remarkable characteristics of uniform composition and excellent welding flow performance, and can meet the special requirements of individual users.
Casting tungsten carbide electrode, also known as cast tungsten carbide alloy electrode, is composed of W2C and WC alloy particles, and the hardness of 93HRA is 1600-1800 degrees.
Cast tungsten carbide welding rods has high hardness, wear resistance, impact resistance and high temperature resistance.
The content of cast tungsten carbide is 60%-65%, and the commonly particle size is 20-200 mesh.
Using the cold-rolled strip drawing method, the hard phase cast tungsten carbide is filled into the low-carbon steel pipe to make a silver-white tubular electrode. The surfacing layer has the characteristics of high hardness and good wear resistance. Recommended for mining machinery, geological tools, feed mill hammers, road construction equipment, Oil drilling equipment, etc. Oxygen-acetylene weak carbonization flame surfacing is recommended, and argon arc surfacing (argon tungsten arc welding) can also be used.
Chemical Composition
| W | Total carbon | Free carbon | Chlorinated residues | Fe | Cr | V | Ti,Ta,Nb |
Other impurities(Co,Ni,Mo,etc.) |
| 95-96 | 3.9±0.1 | 0.08 | 0.1 | 0.5 | 0.2 | 0.2 | 0.2 | 0.1 |
Typical Deposit Characteristics
|
Hardness(HRA) |
93~93.7 |
|
Micro hardness(kg/mm²) |
2500-3000 |
|
TRS( kg/mm²) |
48.2 |
|
Density( g/cm³) |
16.5 |
|
Melting Point℃ |
2525 |
|
Relative wear resistance with that of YG6 as 1 |
3.46~4.10 |
Packing Details
Kraft paper package 5kg
Vacuum packing moisture-proof bag
put into a blue PVC box
500kg/ wooden case
Normal Package or Pack of Tubular Cast Tungsten Carbide Welding Rod According to Customers' requirement
Typical uses and Applications
Making macrocrystalline tungsten carbide powder and mixed with binding metal such as Co to form into
hot spray hardfacing material which arePTAwelded and HVOF sprayed onto surfaces of airplane engine
paperroller chemical devices photocopier and so on.
Macrocrystalline tungsten carbide powder which are able to provide excellent wear resistance against
exposed sliding friction surface,such as slot or warehouse crashing parts, forklift buckets, crane hopper
screw feeder, ingot tongs and grind device components.
Tobused as cemented carbide for solidifying hard rocks drills, continuous coal mining bits, road
construction tools and varies kind ofmoulds and wear parts.
Type We Could Offer
| Grade | Spec. | Fillings characters | Application |
| WLRC-1 | Φ3.2X600 |
60-80 mesh 40-60 mesh 30-40 mesh 20-30 mesh |
Metallurgy, construction,Grain and oil processing, road construction,Surfacing welding of workpiece surface in mining machinery industry,petroleum,Surfacing of geological tools |
| WLRC-2 | Φ4.0x600 | ||
| WLRC-3 | Φ5.0x600 | ||
| WLRCS-1 | Φ3.2x600 | Compound materials like sinterde tungsten carbide,superhard tungsten carbide etc. |
Especially suitable for surfacing of petroleum and natural gas geological tools, with excellent wear resistance and impact resistance, high comprehensive performance |
| WLRCS-2 | Φ4.0x600 | ||
| WLRCS-3 | Φ5.0x600 |
