Weartech Wt-1 Hard Facing Welding Electrodes Metal Wear High Temperature Valve
| Place of Origin | China |
|---|---|
| Brand Name | WL-ALLOTECH |
| Model Number | stellite 1 Electrode |
| Minimum Order Quantity | 5kg |
| Price | Negotiable |
| Packaging Details | 5kg each vacuum packing, a carton 4 packs a total of 20kg |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Electrode | Hardness (HRC) | 50-58 HRC |
|---|---|---|---|
| Density | 8.69 G/cm3 | Melting Range | 1190-1345 ºC |
| Product Name | Cobalt Base Electrode | AWS / ASME | A5.13 / SFA5.13 ECoCr-C |
| Material | Co Cr W C Ni Mo Fe Si Mn | Dimensions | 3.2-6.0mm |
| Equivalent | Stellite 1, BISHILITE (MHA) No.1, Weartech WT-1, Stoodite 1, POLYSTEL 1 | Application | Make Rotating Sealing Ring, Gouge Type Bearing Sleeve, Drill Head, Etc |
| Certificate | ISO 9001 | Test Report | Mill-certificate |
| High Light | Weartech Wt-1 hard facing welding electrodes,hard facing welding electrodes 6.0mm,3.2mm hardfacing stick welding |
||
Product Description

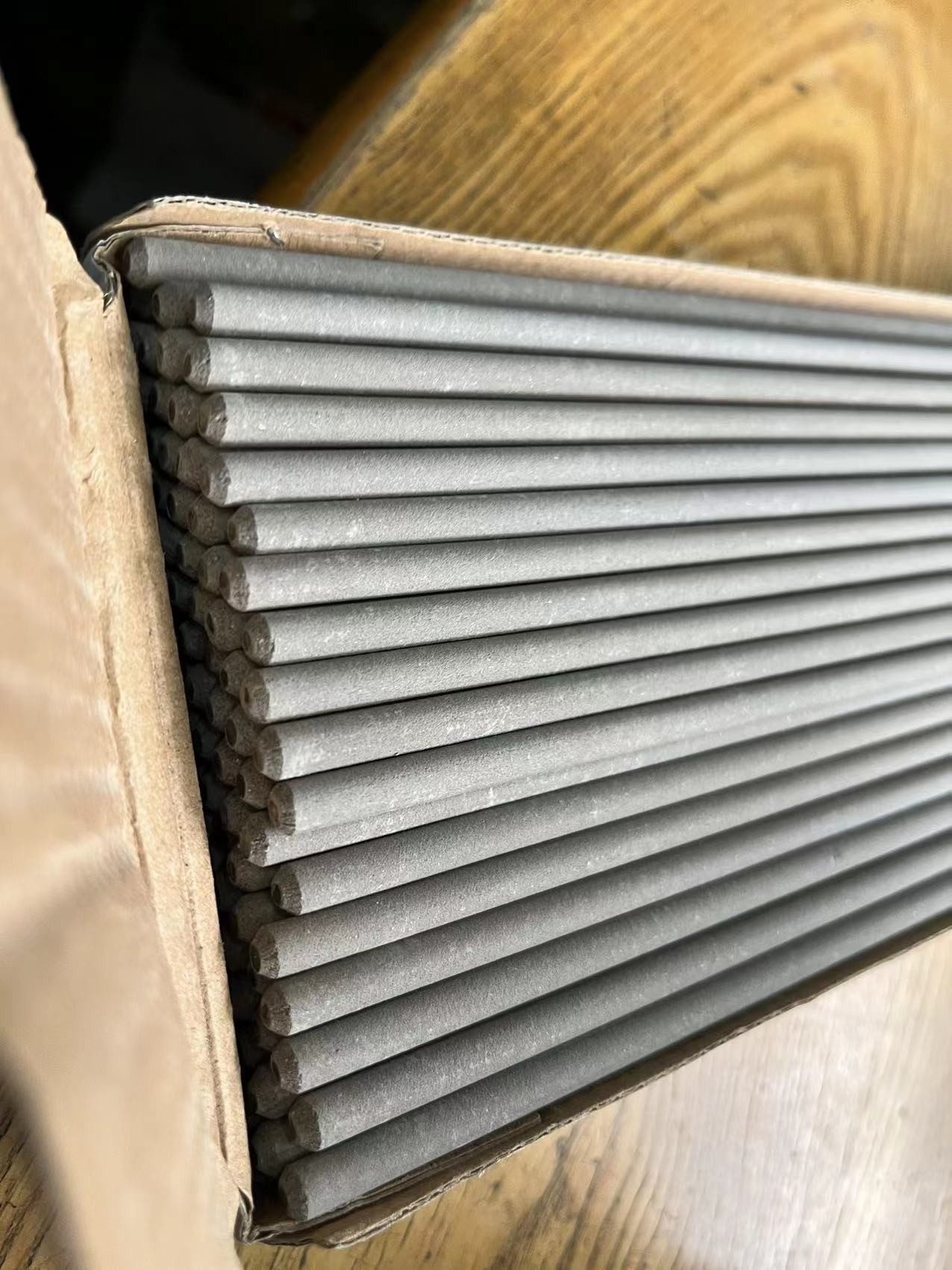

Weartech Wt-1 Welding Electrode - Cobalt Based Alloy Hard Facing Electrode Metal Wear High Temperature Valve
Product Description
WL-Co1 is a cobalt based welding mateiral that has the highest hardness and wear resistance of the standard cobalt alloys. WDCo1 is used in elevated temperature, high wear applications. Exceptional resistance to metal-to-metal wear in corrosive media at high temperatures.
Common Names: Stellite 1, BISHILITE (MHA) No.1, Weartech WT-1
Standard:AWS / ASME: A5.13 / SFA5.13 ECoCr-C
Chemical Composition(%)
|
Co |
Cr |
W |
C |
Ni |
Mo |
Others |
|
Bal. |
28-32 |
11-13 |
2.0-3.0 |
<3.0 |
<1.0 |
Fe, Si, Mn |
Characterisitic
| Abrasion Resistance | Excellent |
| Impact Resistance | Moderate |
| Corrosion Resistance | Good |
| Hardness | HRC 50-60 |
| Deposit Layers | 2 Max |
| Deposit Cross Checks | * Possible |
| Magnetic | No |
| Hot Wear Hardness | Excellent |
| Machineability | Diffcult |
Specification
|
AWS / ASME: A5.13 / SFA5.13 ECoCr-C |
|
| Metal to metal Wear | Excellent |
| Cold / Hot Abrasion | Excellent / Excellent |
| Erosion / Corrosion | Excellent / Excellent |
| Impact Resistance | Unsatisfactory |
| Magnetic | No |
| Deposit Layers |
2 Max
|
| Thermal Conductivity | 14.5 W/m.K, 100.5 Btu-in/hr/ft2/°F |
| Electrical Resistivity |
94.0 µ-ohm.cm, 37.0 µ-ohm.inch
|
Packing Details
For length 350mm 5kg per Vacuum Pack, 1 Vacpak inside a Carton
a carton 4 packs a total of 20kg, then put them in wooden boxes or trays.
Packaging details can also be customized according to customer requirements.
Applications
Used to make rotating sealing ring, gouge type bearing sleeve, drill head, etc
Hydro pulper disc
Oil drilling tools
Mixer seals and rotors
Type We Could Offer
| Trademark | Nominal Chemical Composition | HRC | Application | Reference Standard | |||||||||
| C | Cr | Si | W | Ni | Fe | Mn | Mo | Co | others | ||||
| WL Co1 | 2.1 | 30.0 | 1.0 | 14.0 | ≤3.0 | ≤5.0 | ≤2.0 | ≤1.0 | Bal. | <1.0 | 48-54 | Valve seat insets, bearing, sawteeth, rotary ring, Pump Sleeves | Stellite 1, ECoCr-C |
| WL Co6 | 1.0 | 29.0 | 1.0 | 4.5 | ≤3.0 | ≤5.0 | ≤2.0 | ≤1.0 | Bal. | <1.0 | 38-44 | Engine valve, high temperature valve, turbine blade | Stellite 6, ECoCr-A |
| WL Co12 | 1.4 | 30.0 | 1.4 | 8.5 | ≤3.0 | ≤5.0 | ≤2.0 | ≤1.0 | Bal. | <1.0 | 44-50 | Pressure valves, sawteeth screw fights | Stellite 12, ECoCr-B |
| WL Co21 | 0.2 | 28.0 | 1.0 | ≤3.0 | ≤5.0 | ≤2.0 | 5.5 | Bal. | <1.0 | 20-40 | Fluid valve seat, turbine blades, hot forging die | Stellite 21, ECoCr-E | |
| WL Co25 | 0.15 | 20.0 | 1.0 | 14.0 | 10.0 | ≤5.0 | ≤2.0 | ≤1.0 | Bal. | <1.0 | 22-40 | High temperature and corrosion-resistant valve sealing surface, pressure casting dies, etc. | Stellite 25 |
