Spherical 86wc-10co-4cr Tungsten Carbide Powder Woka3652 For Rollers
| Place of Origin | China |
|---|---|
| Brand Name | WL-ALLOTECH |
| Model Number | 86WC-10CO-4Cr |
| Minimum Order Quantity | 5kg |
| Price | Negotiable |
| Packaging Details | 5kg/bottles, 5 bottles pack in one carton |
| Delivery Time | within 10 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 tons per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Shape | Powder | Color | Gray |
|---|---|---|---|
| Porosity % | AVG<1% | Bonding Strength | >70Mpa |
| Deposition Efficiency | ≥47% | HV0.3 | 1000-1400 |
| Flow Rate | ≤25s/50g | Apparent Density | 4.4-5.2g/cm3 |
| Dimensions | -45+15um , -38+10um | Raw Material | Tungsten Carbide |
| Certificate | ISO 9001 | Test Report | Mill-certificate |
| High Light | 86wc-10co-4cr tungsten carbide powder,tungsten carbide powder Woka3652,Spherical tungsten carbide dust |
||
Product Description

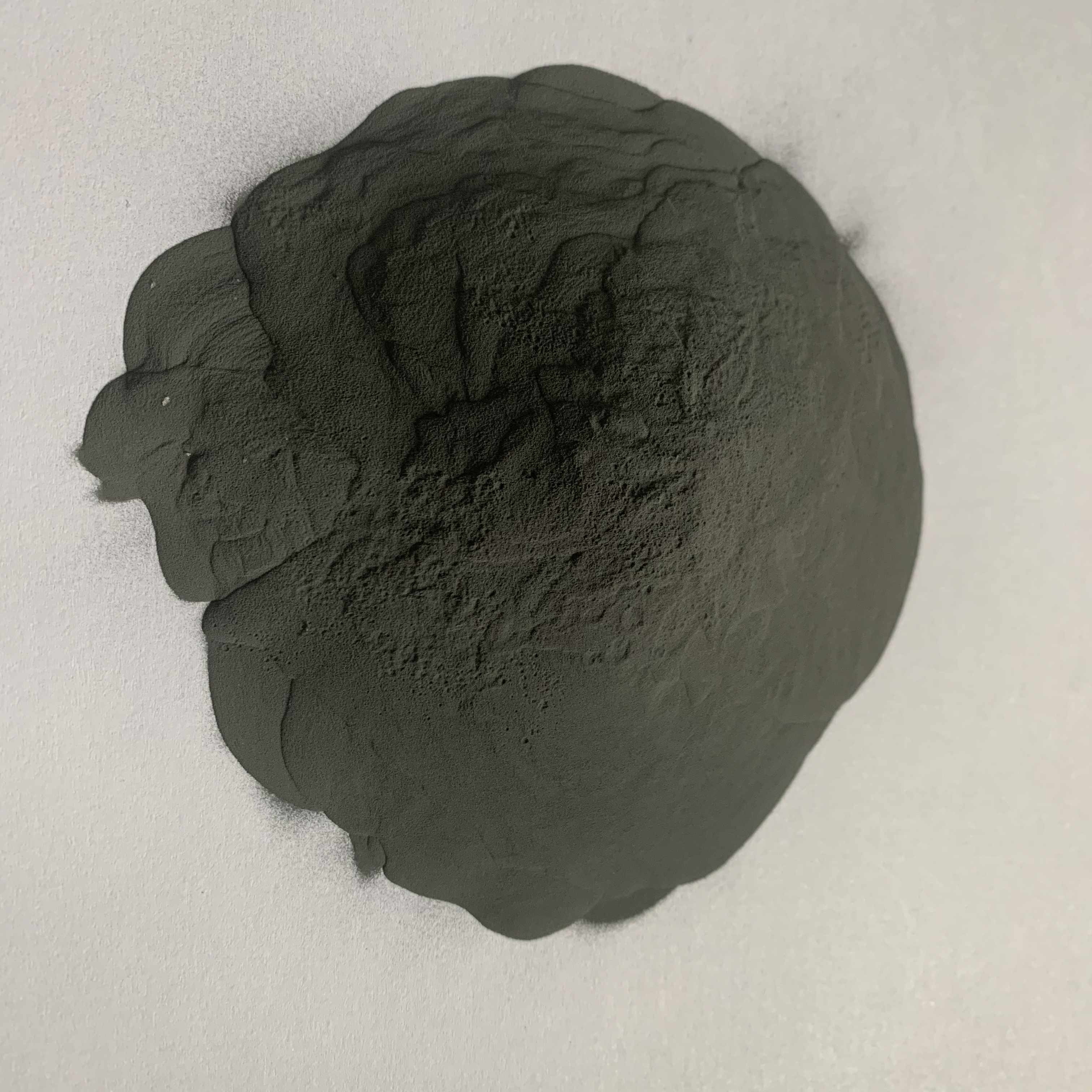

Spherical 86wc-10co-4cr Tungsten Carbide Cobalt Chrome Alloy Woka3652 Tungsten Carbide Cobalt Chrome Powder For Rollers
Product Description
WC-10Co-4Cr is a tungsten carbide powder for HVOF thermal spray coatings. It'better at the corrosion ability than WC-Co and WC-Ni or ther tungsten carbide-based materials .The operating temperatures up to 900°F (482°C). It's widely used for water conservancy, mining and other industries to transport spiral stick, impeller, etc. to strengthen the repair.
Chemical Composition
| Item | Standards | Mesured Data |
| Carbon total | 5.00-5.80 | 5.46 |
| Free Carbon | ≤0.12 | 0.09 |
| WC | 85.0-87.0 | ---- |
| Co | 9.0-11.0 | 9.76 |
| Fe | ≤0.5 | 0.04 |
| O | ≤0.10 | 0.034 |
Typical Deposit Characteristics
| HV0.3 | Porosity % | Bonding strength | Deposition efficiency |
| 1000-1400 | AVG＜1% | ＞70Mpa | ≥47% |
Physical Properties
| Item | Flow Rate(s/50g) | Apparent Density (g/cm3) |
| Standards | ≤25 | ≥4.4-5.2 |
Packing Details

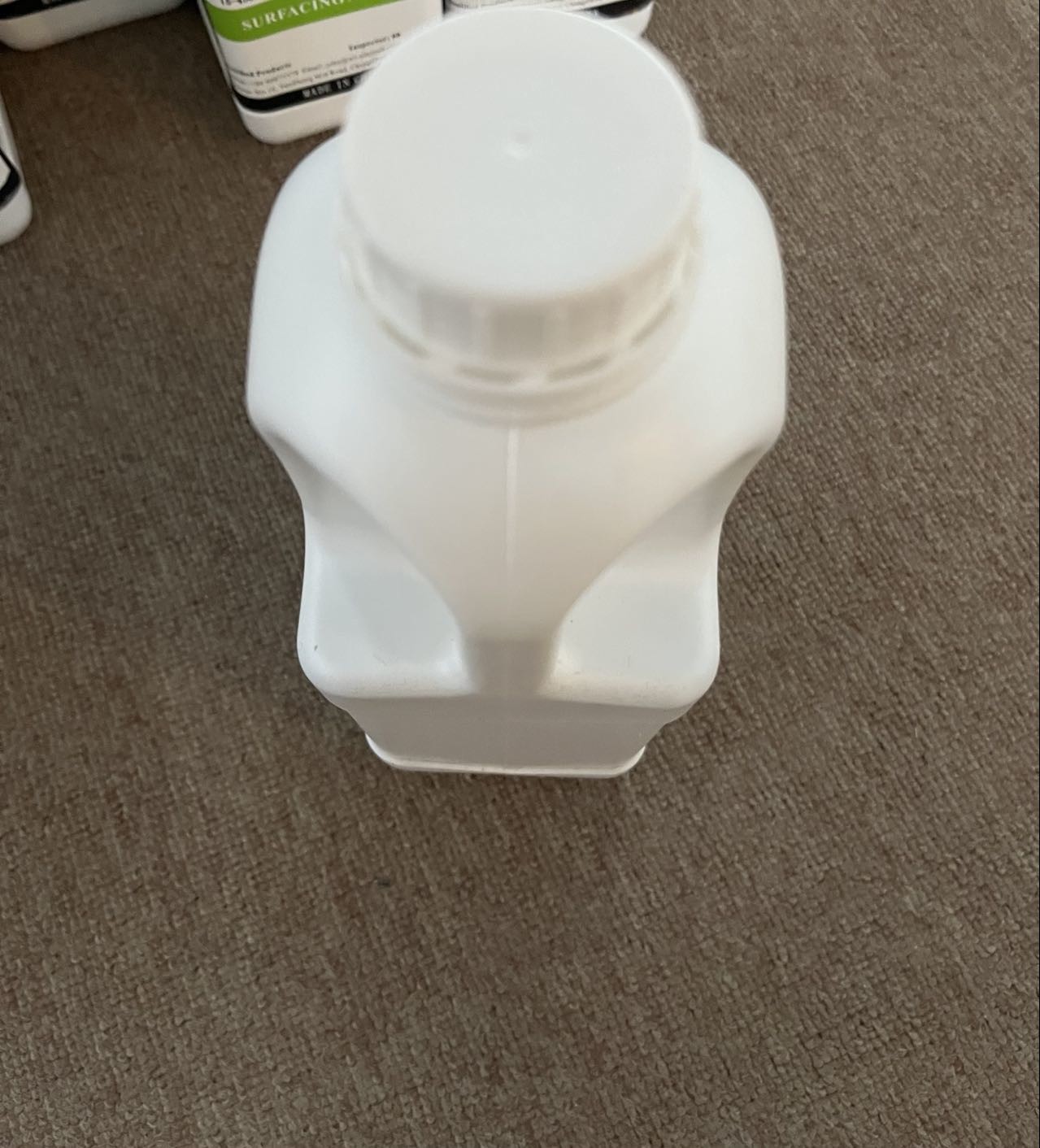

Granularity:-45/+15μm Packing: 5 kg/bottle 4 bottles/box
Typical uses and Applications
1.The metallurgical industry guide roller, conveyor roller, sink stick
2.Aper printing machinery corrugated stick, anilox stick, pressure bachelor and so on
3.Water conservancy, mining and other industries spiral rod, impeller, etc. to strengthen the repair
Type We Could Offer
Thermal spray powder-Carbide
| WL TYPE | Kennametal | PMET | Others | Size |
| WL-WC 12Co | JK112 | Pmet 88-12 | 1342VM/Woka 3102 | Customized |
| WL-WC 10Co 4Cr | JK120 | Pmet 86-10-4 | 1350VM/Woka 3652 | Customized |
| WL-WC 17Co | JK117 | Pmet 83-17 | 1343VM/Woka 3202 | Customized |
| WL-WC 10Ni | JK6189 | Pmet 90-10 | 1310VM/Woka 3302 | Customized |
| WL-Cr3C2-25NiCr | JK135 | Woka7200 | Customized | |
| WL-Cr3C2-20NiCr | Woka7100 | Customized | ||
| WL-60%WC+NiCrBSi | Customized | |||
| WL-60%WC+NiBSi | Customized |
